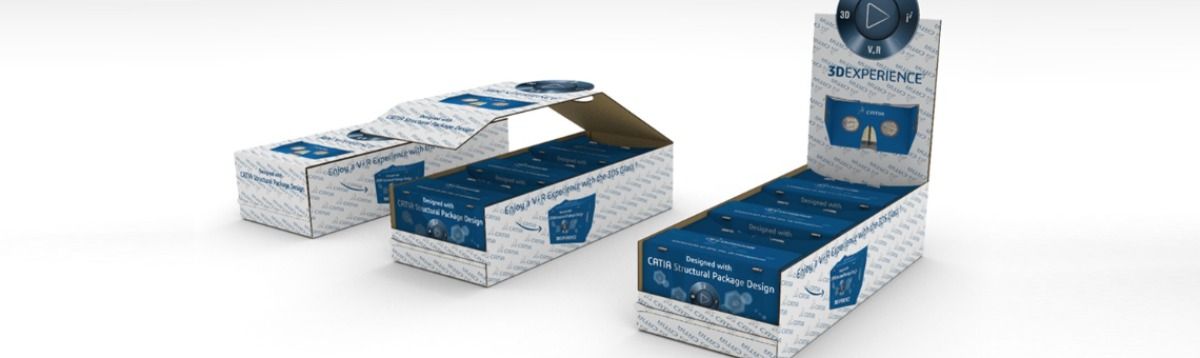

Structural Packaging Designer role provides a powerful and easy to use set of capabilities to design Packaging. Thanks to the complete integration within the 3DEXPERIENCE Platform, all data created can be shared and matured by all collaborators and disciplines. Users are able to create innovative design, using concurrent engineering between unfolded and folded view.
Design in 3D and Dual view 3D/2D for cross conception
Take Advantage of the dual view to design the structural package in context. The benefits of this functionality remain in the fact you can check all the aspect of you packaging in just a click. Switch between the views and verify the different state of your design.
Respect of the design rules (1/2 thickness rule) and company standards
The respect of the design rules is essential to make sure your design will match the reality. The behavior of you structural package will be the same in the 3D environment and in real life. Defining the company standards reduce tooling design by proposing only the good fold type to the designer.
Manage folded cycles (gusset) & gluing cycles
